STRONGFLEX - 036233A: Kit complet bucșe suspensie E39 Sedan SPORT

Codul produsului: 036233A

Name: Full suspension bush kit E39 Sedan SPORT

Fit:

BMW E39 Sedan 95-03

Include:

2 x 031238A Front anti roll bar bush SPORT
or
2 x 031248A Front anti roll bar bush SPORT

2 x 031420A Front lower tie bar to chassis bush 58mm SPORT
or

2 x 031638A Front lower tie bar to chassis bush 66mm SPORT

2 x 031421A Front inner track control arm bush SPORT

2 x 031197A Rear lower trailing arm front bush SPORT

2 x 031198A Rear lower trailing arm rear bush SPORT

2 x 031744A Rear toe adjust inner bush SPORT

2 x 031745A Rear upper arm inner bush SPORT

4 x 031715A Rear beam mount bush SPORT

1 x 031717A Rear diff mount - front bush SPORT

2 x 031718A Rear diff mount - rear bush SPORT

2 x 031167A Rear anti roll bar bush SPORT

Pcs/prod: 23

Required/car: 1

Diagrams:

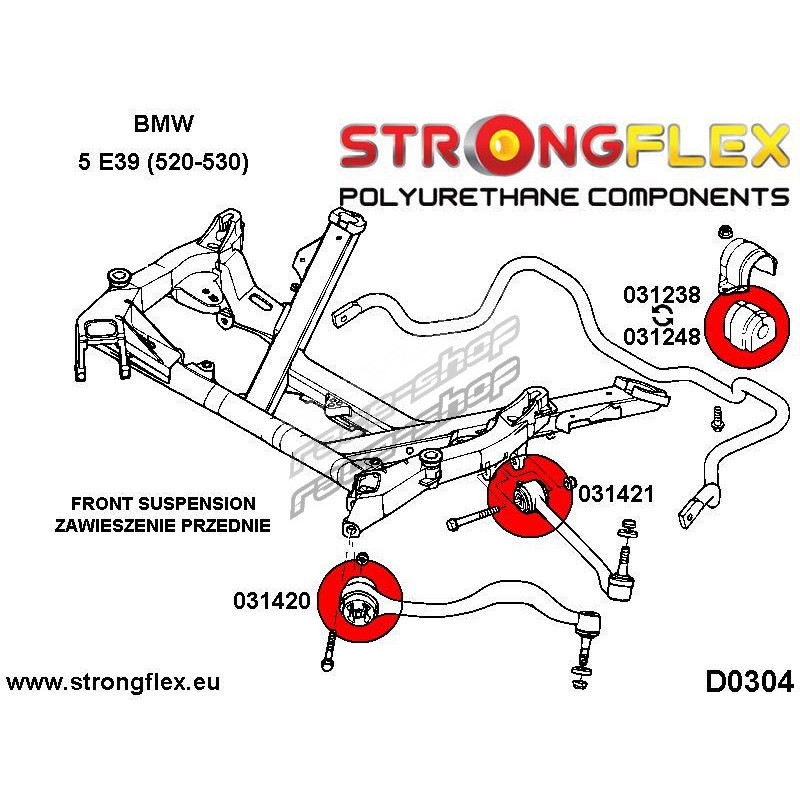

D0304

D0326

D0331

D0334

S0307

S0308

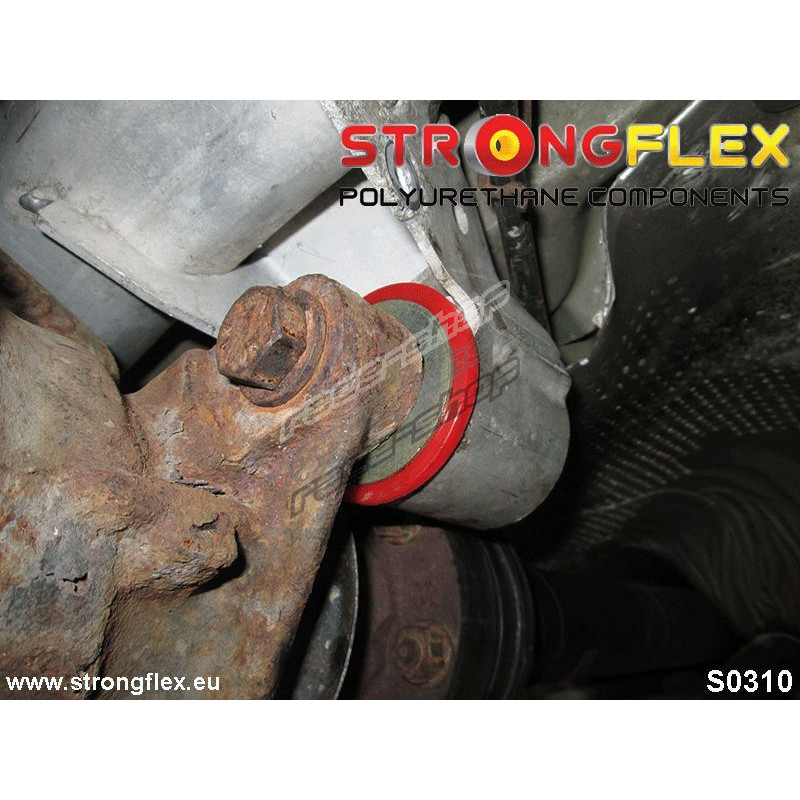

S0310

S0311

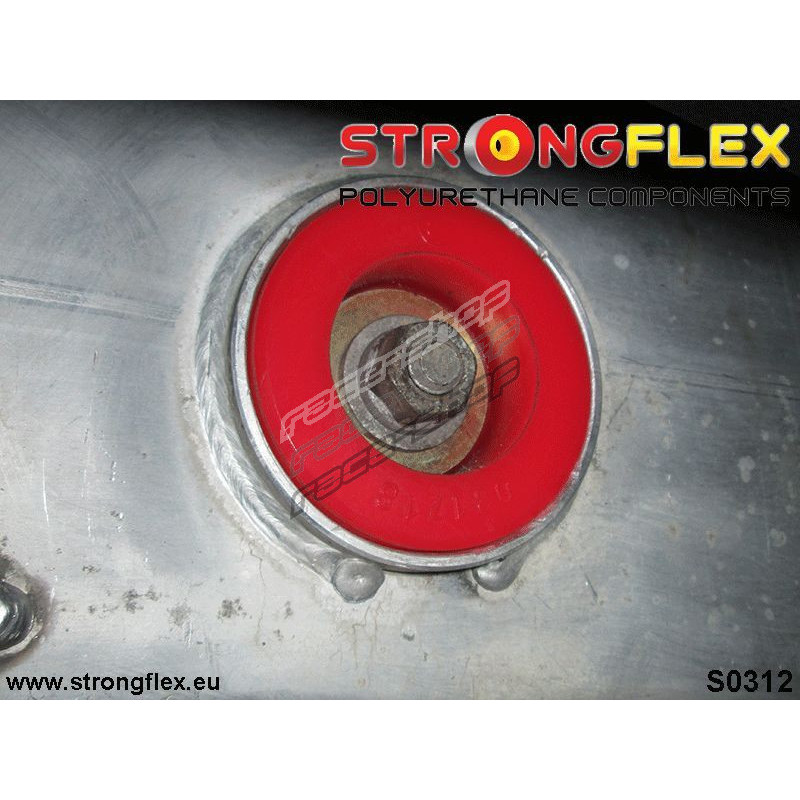

S0312

S0313

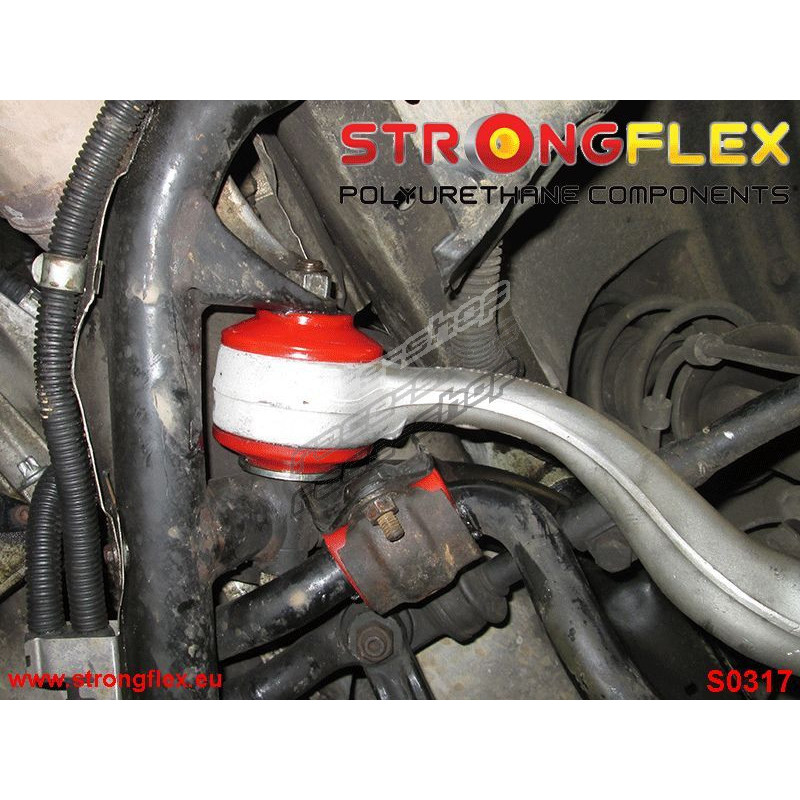

S0317

NOTE!
There are two types of front stabilizer bushing.
Before buying check the type of bush.
See picture S0307

NOTE!
There are two types of front control arm bush.
031420 - 58mm models 520-530,
031638 - 66mm models 535, 540 & M5.
Before buying check the type of bush.

NOTE!
Fixing screws bushes are available in several sizes for Rear trailing arm bush 031198.
Before buying bush, select the right combination for your model.
