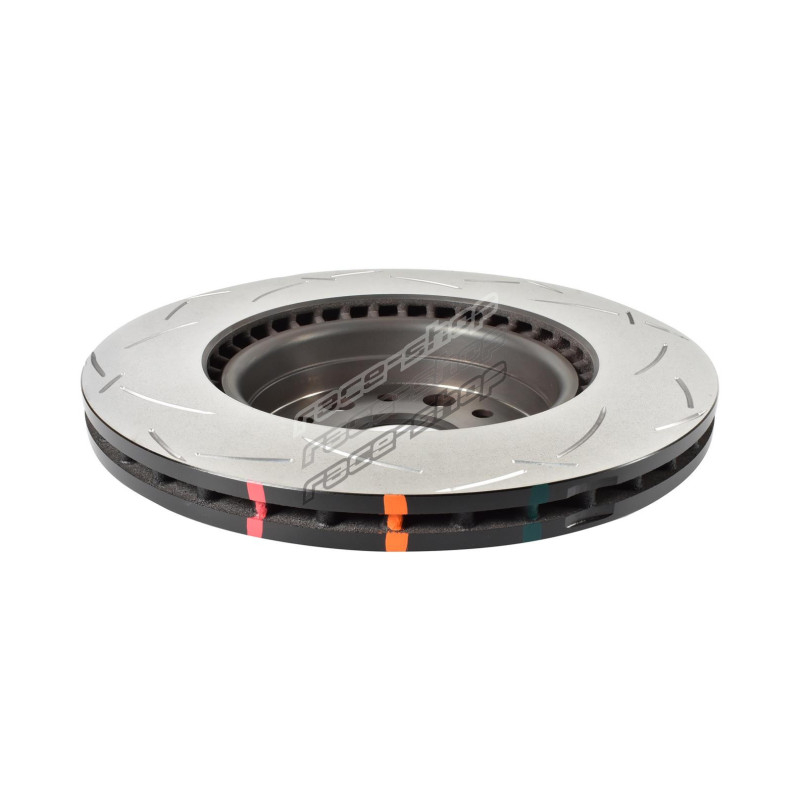

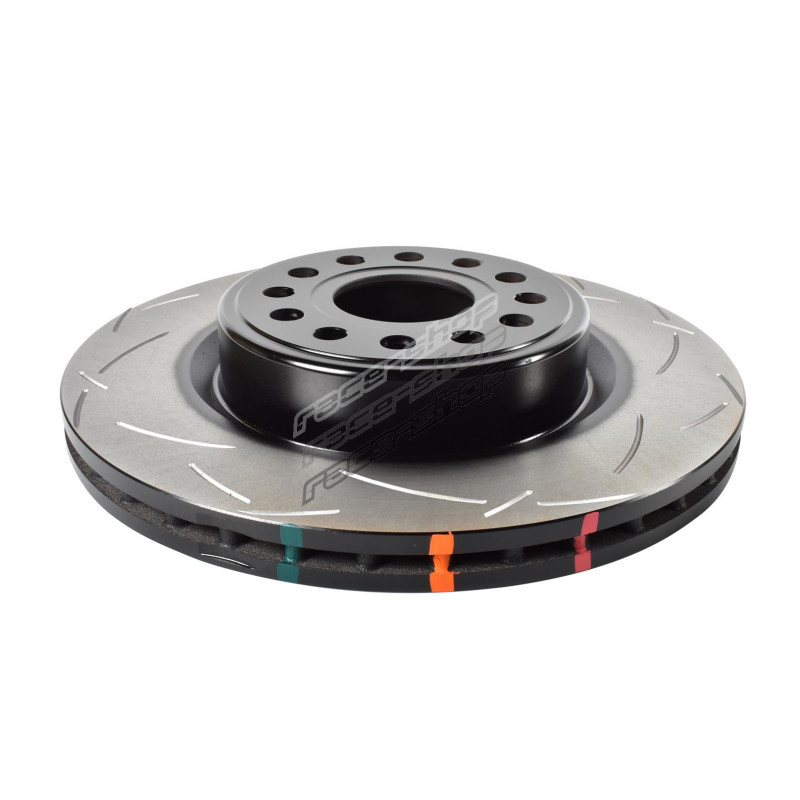

DBA 4000 series T3 DBA43266S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Disc Vent: Kangaroo Paw
Diameter [mm]: 378
Height [mm]: 67,5
Thickness [mm]: 30
Minimum Thickness [mm]: 28,4
Inner Diameter [mm]: 78,5
Number of Holes: 6
Axle: FRONT
Tech Bulletins:
Tech Bulletins:
Tech Bulletins:

Suitable for:

Front - RAM TRUCKS/1500/3.6 305HP (2019-) Brake Pads: DB15195, Front - RAM TRUCKS/1500/5.7 395HP (2019-) Brake Pads: DB15195, Front - RAM TRUCKS/1500/6.2 702HP TRX (2019-) Brake Pads: DB15195, Front - DODGE/Ram Pick-Up 1500/3.6 305HP (2019-) Brake Pads: DB15195, Front - DODGE/Ram Pick-Up 1500/5.7 395HP (2019-) Brake Pads: DB15195, Front - DODGE/Ram Pick-Up 1500/6.2 702HP TRX (2019-) Brake Pads: DB15195,
