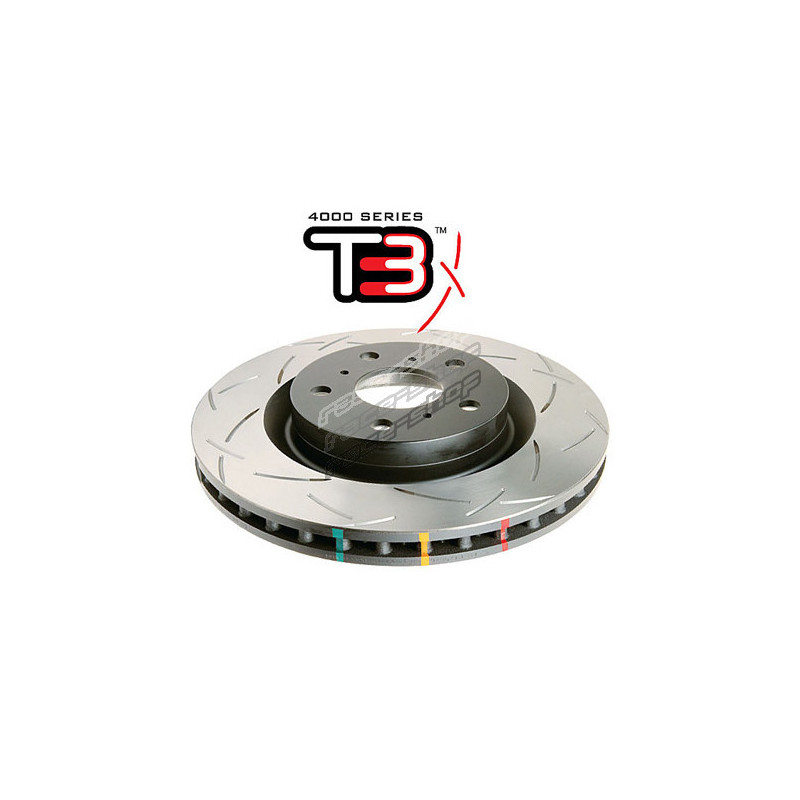

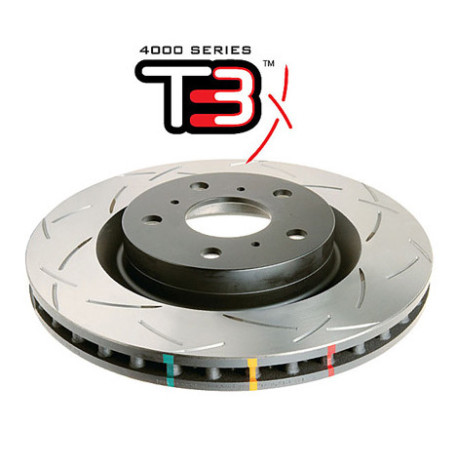

DBA 4000 series T3 DBA43024S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Disc Vent: Vented
Diameter [mm]: 354.7
Height [mm]: 48.2
Thickness [mm]: 32
Minimum Thickness [mm]: 30
Inner Diameter [mm]: 71
Number of Holes: 5
ECE R90 number: E11*90R02/06*60535*00

Suitable for:

Front - DAIMLER/Super Eight/4.2 Supercharged (2006-2007) , Brake Caliper: ATE Front - DAIMLER/Super Eight/4.2 Supercharged (2007-2010) , Brake Caliper: ATE Front - DAIMLER/Super V8/4.2 Supercharged (2006-2008) , Brake Caliper: ATE Front - JAGUAR/F-Type/2.0 Turbo 300BHP (2017-) , Brake Caliper: ATE Front - JAGUAR/F-Type/3.0 Supercharged 340BHP (2013-2018) , Brake Caliper: ATE Front - JAGUAR/S-Type/4.2 R Supercharged 390BHP (2006-2008) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/2.0 Turbo 241BHP (2012-2015) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/3.0 Supercharged 340BHP (2012-2015) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/3.0 Twin TD 211BHP (2009-2011) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/3.0 Twin TD 240BHP (2009-2015) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/3.0 Twin TD 275BHP (2009-2015) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/4.2 Supercharged 416BHP (2008-2010) , Brake Caliper: ATE Front - JAGUAR/XF (X250)/5.0 385BHP (2009-2012) , Brake Caliper: ATE Front - JAGUAR/XF Sportbrake/3.0 Twin TD 240BHP (2012-2016) , Brake Caliper: ATE Front - JAGUAR/XF Sportbrake/3.0 Twin TD 275BHP (2012-2016) , Brake Caliper: ATE Front - JAGUAR/XJ/2.0 Turbo 240BHP (2012-2019) , Brake Caliper: ATE Front - JAGUAR/XJ/3.0 Supercharged 340BHP (2012-2019) , Brake Caliper: ATE Front - JAGUAR/XJ/3.0 Twin TD 275BHP (2010-2016) , Brake Caliper: ATE Front - JAGUAR/XJ/3.0 Twin TD 300BHP (2015-2016) , Brake Caliper: ATE Front - JAGUAR/XJ/3.0 Twin TD 300BHP (2015-2019) , Brake Caliper: ATE Front - JAGUAR/XJ/5.0 385BHP (2010-2019) , Brake Caliper: ATE Front - JAGUAR/XJR/4.2 Supercharged (2006-2009) , Brake Caliper: ATE Front - JAGUAR/XK/5.0 385BHP (2009-2014) , Brake Caliper: ATE Front - JAGUAR/XKR/4.2 Supercharged (2006-2009) , Brake Caliper: ATE
