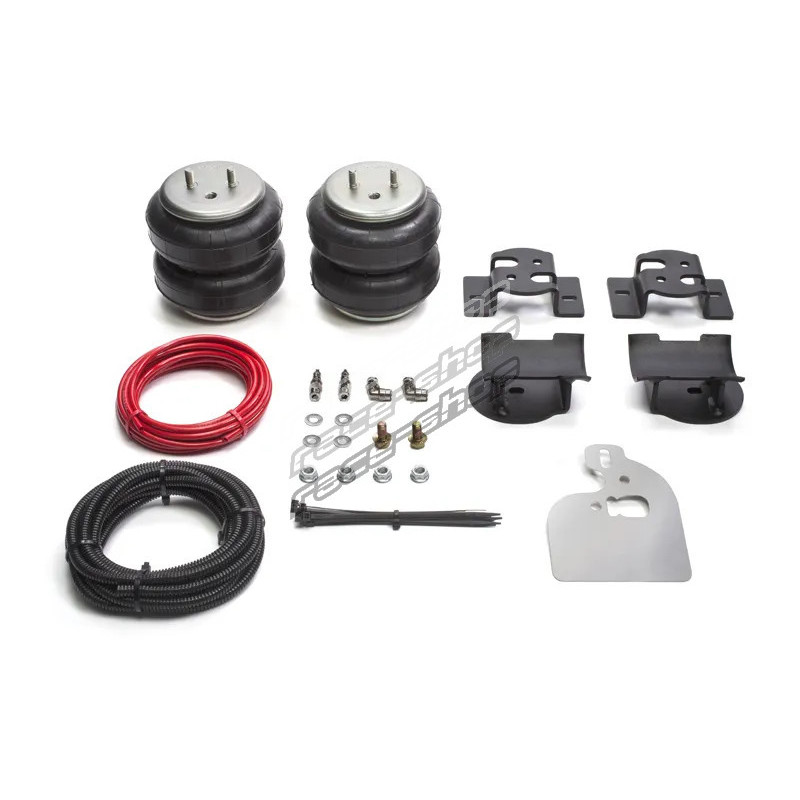

Pedders RR4700 Air Assist Bellows Kit

The Pedders Air Assist Bellows System is expertly designed to provide additional support to vehicles equipped with leaf spring suspension, especially during towing or when carrying varying loads. It helps compensate for minor sag in the rear suspension and significantly reduces the risk of bottoming out when driving over rough or uneven terrain. This leads to improved vehicle control, ride comfort, and safer handling under load.

While this system improves load management and driving dynamics, it does not increase the vehicle’s Gross Vehicle Weight (GVM). For vehicles with visibly fatigued or significantly sagged leaf springs, Pedders recommends spring replacement prior to installation. With its durable construction and easy fitment, the Pedders Air Assist Bellows System is an excellent upgrade for vehicles that need adaptable suspension support without compromising OEM load ratings.

Features & Benefits:

• Exceptional Load Carrying – Enhances rear suspension support when towing or hauling.
• Handles Large Load Changes – Adapts to varying cargo weights with consistent performance.
• Load Assistance – Complements existing suspension without altering factory specifications.
• Restricts Bottoming Out – Minimizes harsh impacts caused by road irregularities or heavy loads.
• Comfortable Ride – Maintains stability and comfort even under increased load conditions.

Note: Pedders Air Assist products do not increase the vehicle's Gross Vehicle Weight (GVM).

Tech. Info:

Reference: RR4700

Weight: 6.25

Note: Standard height

Suitable for:

Toyota Landcruiser 70 Series, FZJ78R | 1999-2007 70 Series, FZJ78R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, FZJ79R | 1999-2007 70 Series, FZJ79R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, HDJ78R | 1999-2007 70 Series, HDJ78R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, HDJ79R | 1999-2007 70 Series, HDJ79R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, HZJ78R | 1999-2007 70 Series, HZJ78R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, HZJ79R | 1999-2007 70 Series, HZJ79R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, VDJ76R | 2007-2016 70 Series, VDJ76R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, VDJ78R | 2007-Onward 70 Series, VDJ78R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, VDJ79R | 2007-Onward 70 Series, VDJ79R - Rear Airbag , Standard height
Toyota Landcruiser 70 Series, VDJ76R | 2016-Onward 70 Series, VDJ76R - Rear Airbag , Standard height
