KTY28033-1A Clutch Kit Xtreme Outback Heavy Duty Organic 480Nm 820Kg

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:

• Torque capacity 480Nm
• Clamp load 820Kg Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

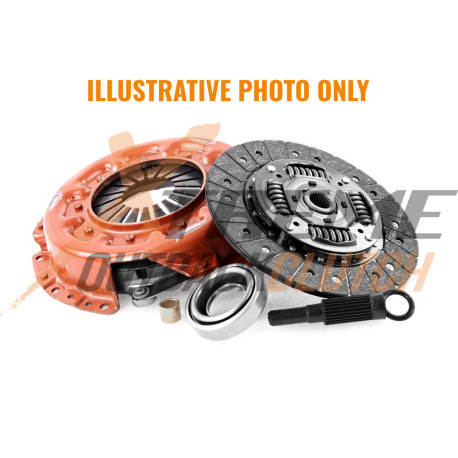

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY28033-1A

Weight: 10.71

Note:

Torque (Nm): 480
Clamp Load: 820KG
Flywheel Step: +0.5mm
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29,8
Design: Single Plate
Diameter [mm]: 275
Stage: Stage 1

Suitable for:

- Toyota/Hilux/4.0 (GGN15_) 275mm clutch/2008-2015/1GR-FE 3956 Petrol 173 kW 235 BHP (2008 - 2015)
Toyota/Hilux/4.0 4WD (GGN25_) 275mm clutch/2008-2015/1GR-FE 3956 Petrol 173 kW 235 BHP (2008 - 2015) ,
