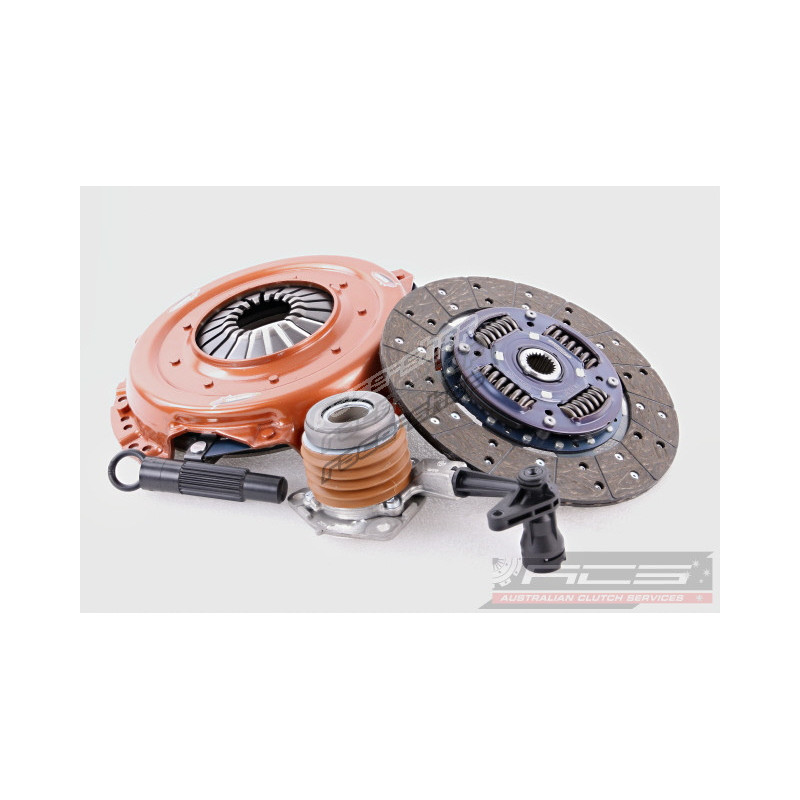

KGM26430-1A Clutch Kit Xtreme Performance Heavy Duty Organic Incl CSC 630Nm

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 630Nm
• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM26430-1A

Weight: 9.779999999999999

Note:

Clutch Disc Diameter (mm): 250
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 630
Flywheel Step: 0
Design: Single Plate
Stage: Stage 1
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Holden/H Series/VE | 3.6 i V6/2007.09-2013.10/HB, HN, LE0, LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2007.09 - 2013.10)
Holden/H Series/VZ | 3.6i V6/2004.08-2006.09/HB, LE0 3565 Petrol 175 kW 238 BHP (2004.08 - 2006.09)
Holden/H Series/VZ | 3.6i V6/2004.09-2007.07/HB, LE0 3565 Petrol 175 kW 238 BHP (2004.09 - 2007.07)
Holden/H Series/3.6 i V6/2004.11-2005.12/HB, LE0 3565 Petrol 175 kW 238 BHP (2004.11 - 2005.12)
Holden/H Series/3.6 i V6 4x4/2004.11-2005.12/HB, LE0 3565 Petrol 175 kW 238 BHP (2004.11 - 2005.12)
Holden/H Series/VZ | 3.6i V6 4x4/2005.11-2007.12/HB, LE0 3565 Petrol 175 kW 238 BHP (2005.11 - 2007.12)
Holden/H Series/VE | 3.6i V6/2006.07-2013.05/HB, LE0 3565 Petrol 180 kW 245 BHP (2006.07 - 2013.05)
Holden/H Series/VZ | 3.6i V6/2006.09-2007.12/HB, LE0 3565 Petrol 180 kW 245 BHP (2006.09 - 2007.12)
Holden/H Series/VE | 3.6i V6 Dual Fuel LPG/2006.08-2013.05/HB, LE0, LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2006.08 - 2013.05)
Holden/H Series/VE | 3.6i V6/2008.11-2013.05/HB, LE0, LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2008.11 - 2013.05)
Holden/H Series/VZ | 3.6i V6 Dual Fuel LPG/2004.09-2007.07/HN, LE0, LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2004.09 - 2007.07)
Holden/H Series/VE | 3.6i V6 Dual Fuel LPG/2007.09-2013.10/HN, LE0, LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2007.09 - 2013.10)
Holden/H Series/VZ | 3.6i V6/2004.09-2006.06/HV 3565 Petrol 190 kW 258 BHP (2004.09 - 2006.06)
Holden/H Series/VE | 3.6i V6/2009.09-2013.05/LLT, LFX 3564 Petrol 210 kW 286 BHP (2009.09 - 2013.05)
Holden/Commodore/VE | 3.6/2006.08-2013.05/LW2(218CUV6) 3565 Petrol 175 kW 238 BHP (2006.08 - 2013.05)
Holden/Calais/VE | 3.6i V6/2006.07-2013.05/LY7 3564 Petrol 195 kW 265 BHP (2006.07 - 2013.05)
Holden/Commodore/VZ | 3.6i V6/2004.09-2007.08/LY7, H7 3564 Petrol 190 kW 258 BHP (2004.09 - 2007.08)
Holden/Commodore/VE | 3.6i V6/2006.07-2013.05/LY7, H7 3564 Petrol 195 kW 265 BHP (2006.07 - 2013.05) ,
