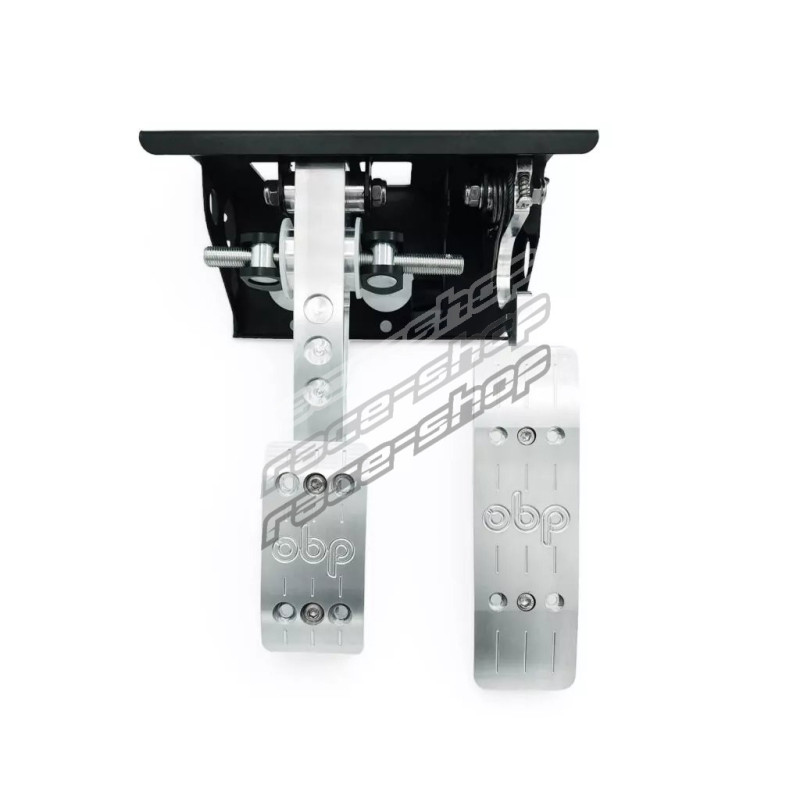

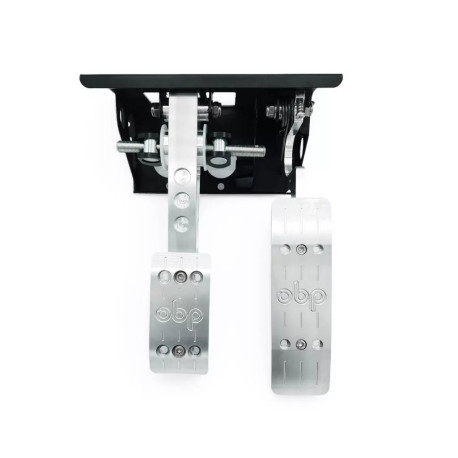

Pro-EV V2 Top Mount/Underslung Bulkhead Fit 2 Pedal System (Accelerator & Brake)

Our lightweight range dual brake master cylinder bias controlled pedal boxes have been designed to offer the driver the highest level of efficiency in this critical area. The CNC Machined Pedals, together with low friction and high-quality oil impregnated spherical bearings set new standards in pedal box design. The pedal pads are also CNC Machined Billet aluminium which can be adjusted in multiple positions to allow the driver to have different pedal ratio options and also comfort.

The base box frame has been developed out of 2.5mm Mild Steel to provide an improved robustness and strength which is designed to mount up against the bulkhead to provide further support. On the rear of the frame, it has 2 x mounting points for your brake master cylinders (will fit the majority of master cylinders on the market).

The Accelerator pedal features stops at the rear and front as well as a sensitive return spring.

Product Information:

• Fitment: Bulkhead Top Mount Fit
• Pedal Ratio: 4.9:1 / 5.24:1
• Weight: 2.1kg
• Available with Cable Linkage or Drive-By-Wire Sensor
• Fitment Drawing & Pedal Box Fitting Guide is shown in Product Specifications
