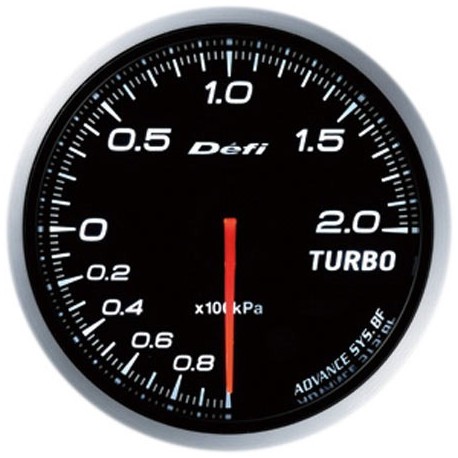

DEFI ADVANCE gauge, boost pressure 0 - 2 BAR, white

The ADVANCE BF Series by Defi offers premium, electronically controlled gauges designed for precision, visibility, and ease of use. Featuring flat glass and a newly designed low-profile back case (11% thinner than previous models), these gauges provide a sleek and modern appearance without sacrificing performance.

Equipped with Defi’s original STS26/VS2 stepping motor, the pointer delivers smooth, instantaneous responses—ideal for monitoring rapid changes in high-performance vehicles. The microcontroller enables ultra-fine calibration of up to 0.059° across a 270° sweep, ensuring accurate real-time vehicle data.

High-brightness LED lighting (200% brighter than older models) offers crisp visibility in three color options—White, Amber Red, and Blue (USDM models: Amber Red only). Illumination adjusts in five levels for day and night, with optional dimming cancellation. A remote switch unit enables easy control from a distance, while opening/closing animations add a custom touch.

These gauges also include peak/warning memory, a 3-minute data replay function, and built-in self-diagnostics for wiring or communication issues. When connected to the ADVANCE Control Unit, installation is easy via daisy-chain wiring, and integration with ADVANCE ZD enables automatic dimming. Accessories such as a mounting bracket, meter cup, and bezel are included.

Features:

• Flat glass face and precise scale for improved needle accuracy
• 11% slimmer back case for a cleaner install
• High-visibility LED illumination in White, Amber Red, and Blue (USDM: Amber Red only)
• Remote switch unit for easy operation
• Original stepping motor provides smooth, high-speed response
• Microcontroller-calibrated accuracy: up to 0.059° resolution
• Adjustable brightness (5 levels for day/night, with dimming override)
• Built-in warning and peak LED, buzzer alerts (ON/OFF selectable)
• Stores peak/warning values and records up to 3 minutes of driving data
• Supports differential pressure display when paired with turbo and fuel pressure sensors
• ADVANCE Control Unit required; compatible with daisy-chain ADVANCE system
• Sizes: 60 mm
• supports 1–8 cylinder engines
• Includes mounting bracket, meter cup, and bezel
