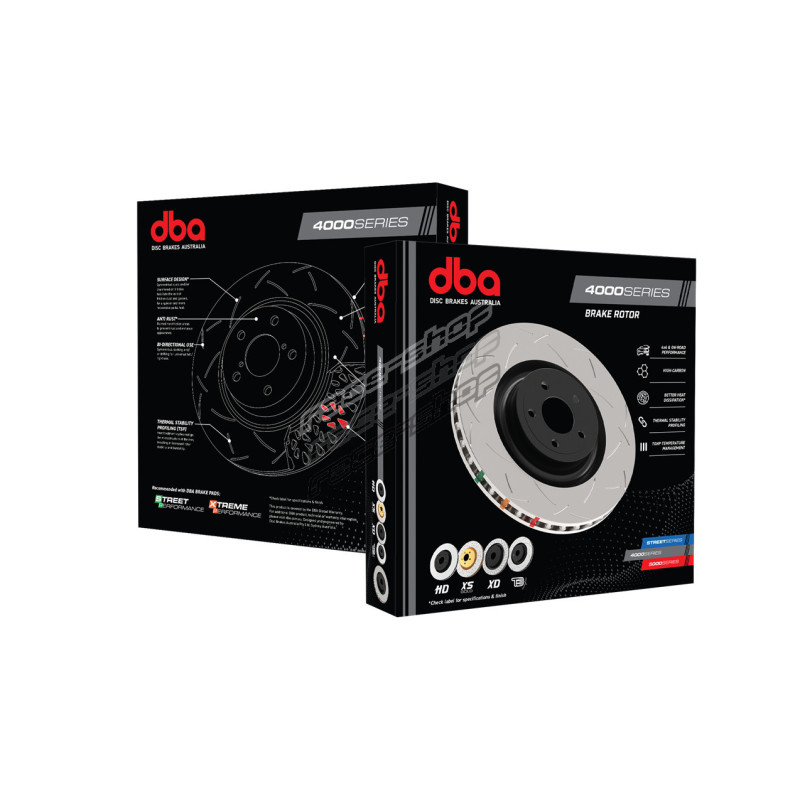

DBA 4000 series T3 DBA42699S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 330
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 67.02
Minimum Thickness [mm]: 20
Thickness [mm]: 22
Height [mm]: 41.60
Stage: Stage 4
ECE R90 number: E11*90R02/06*60531*00

Suitable for:

Rear - MERCEDES-BENZ/A-Class (W176) A45 AMG/2.0 Twin Turbo 360BHP (2013-2018) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/A-Class (W176) A45 AMG/2.0 Twin Turbo 381BHP (2015-2018) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/CLA Shooting Brake (X117) CLA45 AMG/2.0 Twin Turbo 360BHP (2013-2015) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/CLA Shooting Brake (X117) CLA45 AMG/2.0 Twin Turbo 381BHP (2015-2019) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/CLA-Class (C117) CLA45 AMG/2.0 Twin Turbo 360BHP (2013-2015) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/CLA-Class (C117) CLA45 AMG/2.0 Twin Turbo 381BHP (2015-2019) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/GLA-Class (X156) GLA45 AMG/2.0 Twin Turbo 355BHP (2014-2016) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/GLA-Class (X156) GLA45 AMG/2.0 Twin Turbo 381BHP (2015-2020) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/SLC (R173) SLC43 AMG/3.0 Twin Turbo 367BHP (2016-2018) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/SLC (R173) SLC43 AMG/3.0 Twin Turbo 390BHP (2018-) Brake Pads: DB8880, Brake Caliper: TRW Rear - MERCEDES-BENZ/SLK (R172) SLK55 AMG/5.5 421BHP (2012-2016) Brake Pads: DB8880, Brake Caliper: TRW
