RWD POWER DASH7 Dashboard Mount for BMW E36

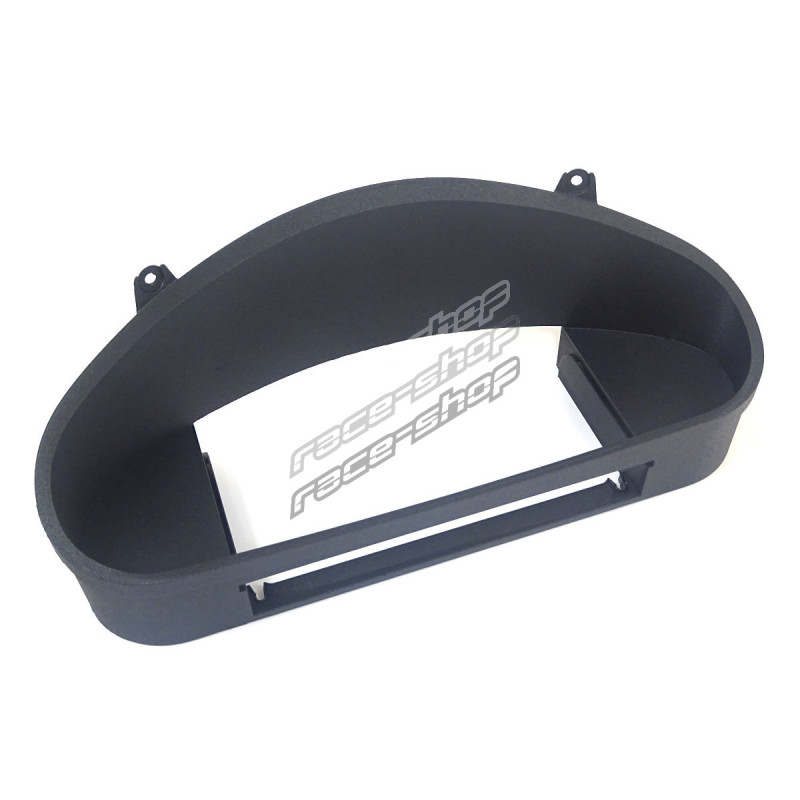

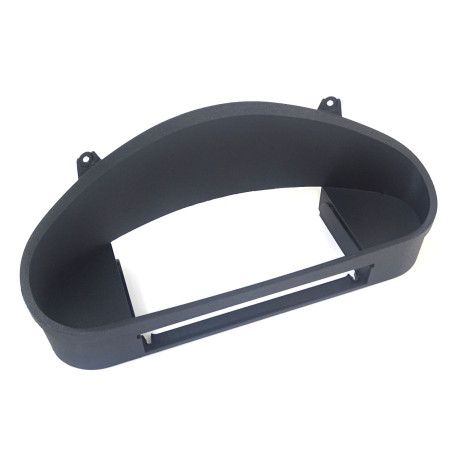

Mount for the RWD POWER DASH7 touch display. It fits perfectly in the original BMW E36 dashboard in place of the factory instrument cluster and is fastened with the original screws.

Installation:

• Install the two lower M4 screws in the DASH7, using screws longer than the thread in the DASH so that about 3 mm remains free behind the back surface
• Slide the DASH7 in at an angle at the top of the mount
• Position the DASH7 vertically and move it down until the bottom screws click into the mount

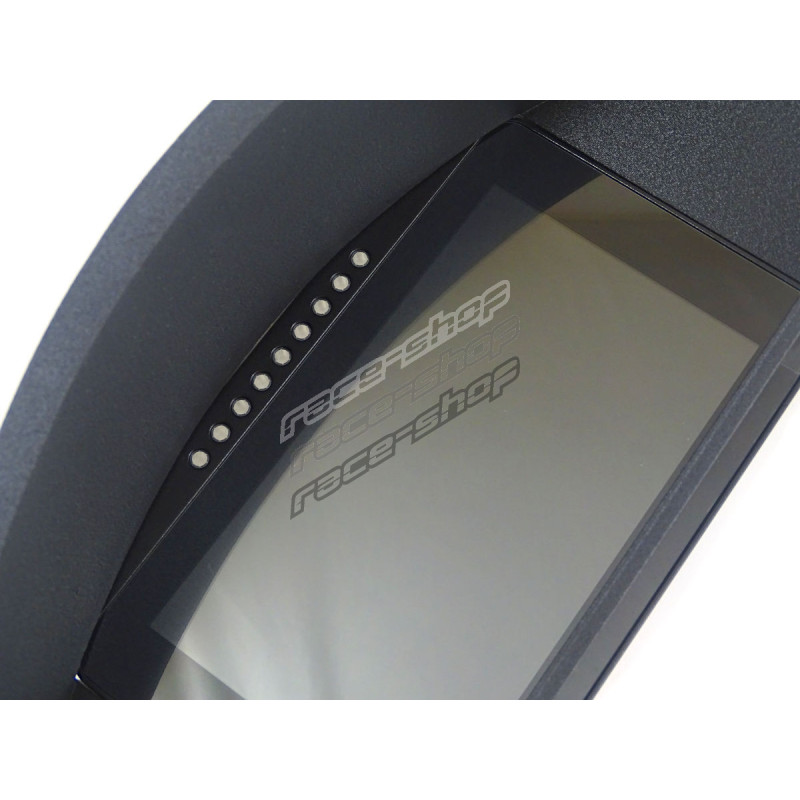

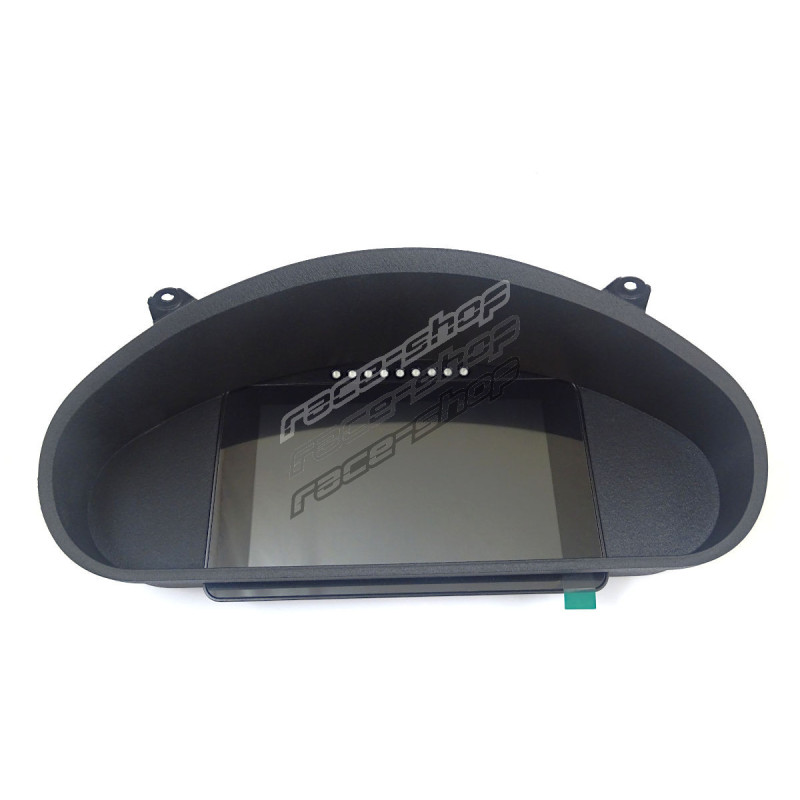

The display is held securely and the surrounding edge locates it front to back. The whole working area of the screen is clearly visible, with a 1–2 mm margin at the bottom, and the LEDs at the top are fully visible.

Specification:

• Compatible display: RWD POWER DASH7
• Vehicle: BMW E36
• Fixing: original instrument cluster screws
• Display fixing: 2 x M4 screws

The display is not included – the price covers the mount only. Wiring and adapters are also sold separately.
