Kit intercooler sport Audi RSQ3 F3

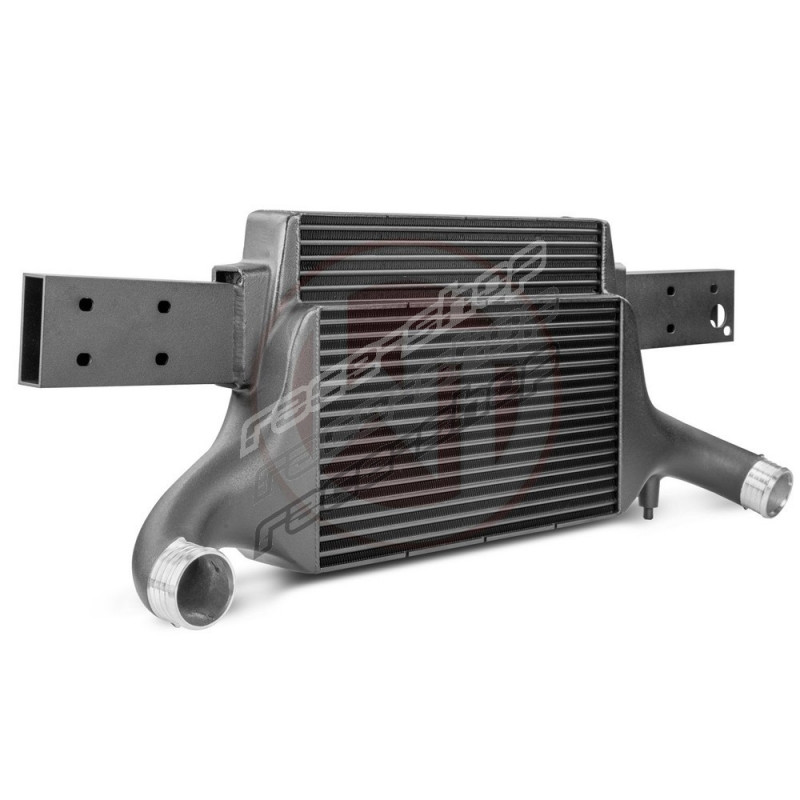

Competition Intercooler Kit EVO3 for Audi RSQ3


Audi RSQ3 F3 294KW/400PS 10/2019+

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16.500cm³) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (simple adjustments necessasy - check installation instruction). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)

WT EVO 3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)

kit comes with:
1 intercooler including crossmember
1 material de montare

Din anul 2002, firma Wagner produce piese de înaltă calitate care garantează o performanță sporită și o rezistență maximă atunci când sunt utilizate în cele mai extreme condiții la mașini de curse sau serie. Projectarea și fabricarea componentelor acestui brand este în Germania cu un standard ridicat certificat care oferă documentația TÜV pentru multe produse.
