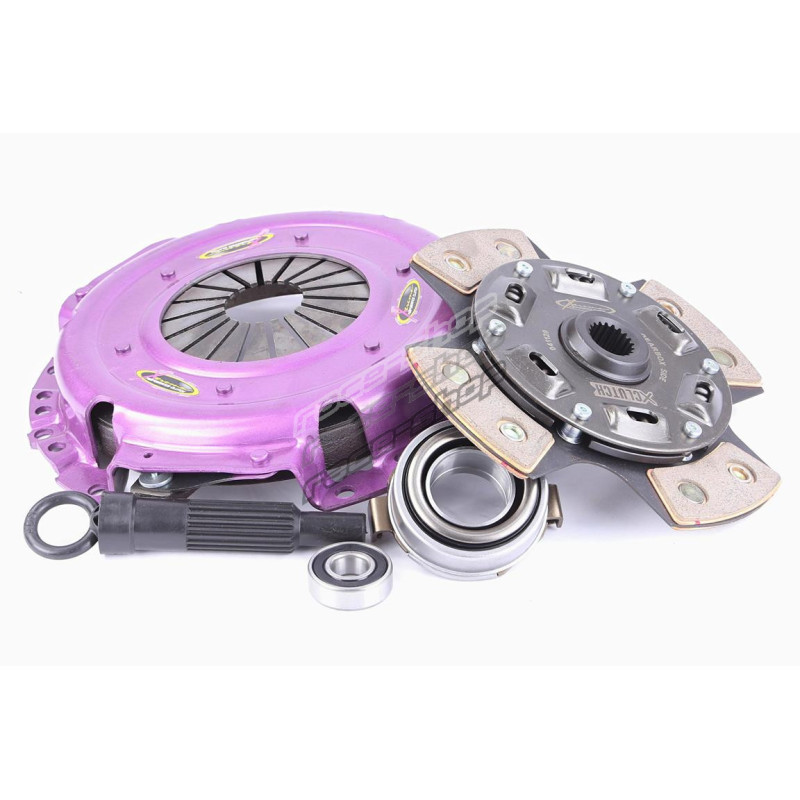

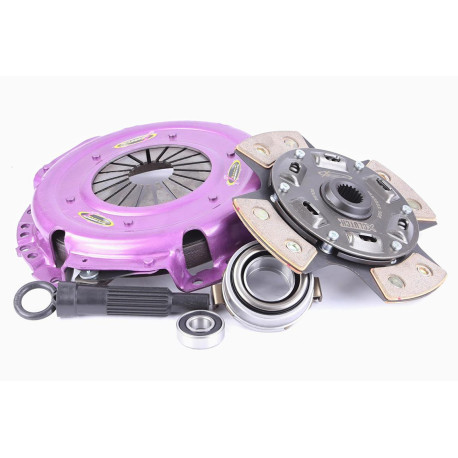

KFD19001-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 310Nm 530kg (30%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 310Nm
• Clamp load 530kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KFD19001-1B

Weight: 5.61

Note:

Clutch Disc Diameter (mm): 190
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.8
Torque (Nm): 310
Flywheel Step: +.5mm/.020""
Design: Single Plate
Stage: Stage 2
Clamp Load: 530Kg (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Mazda/323/1.5 (BF105)/1987.09-1989.10/B5 1498 Petrol 54 kW 73 BHP (1987.09 - 1989.10)
Mazda/323/1.5 (BW105)/1987.01-1989.05/B50, B53, B5 1498 Petrol 54 kW 73 BHP (1987.01 - 1989.05)
Mazda/323/1.5 (BW5W. BW105)/1986.05-1989.05/B50, B53, E5 1490 Petrol 55 kW 75 BHP (1986.05 - 1989.05)
Mazda/323/1.6 GT (BFMP)/1986.11-1989.10/B6 (SOHC) 1597 Petrol 63 kW 85 BHP (1986.11 - 1989.10)
Mazda/323/1.6 GT (BF106)/1985.08-1993.08/B6 (SOHC) 1597 Petrol 77 kW 105 BHP (1985.08 - 1993.08)
Mazda/323/1.6 GT (BFMP)/1986.01-1988.12/B6 (SOHC) 1597 Petrol 77 kW 105 BHP (1986.01 - 1988.12)
Mazda/323/1.6 (BF106)/1987.09-1989.10/B68 1597 Petrol 54 kW 73 BHP (1987.09 - 1989.10)
Mazda/323/1.6 GT Turbo (BFMP)/1985.10-1991.11/B6T 1597 Petrol 103 kW 140 BHP (1985.10 - 1991.11)
Mazda/323/1.5 (FA45V)/1982.04-1986.05/D5 1490 Petrol 52 kW 70 BHP (1982.04 - 1986.05)
Mazda/323/1.5 (BD105)/1982.08-1985.04/D5 1490 Petrol 59 kW 80 BHP (1982.08 - 1985.04)
Mazda/323/1.5 (BD105)/1981.05-1985.07/E5 1490 Petrol 55 kW 75 BHP (1981.05 - 1985.07)
Mazda/323/1.5 (BD105)/1981.05-1985.12/E5 1490 Petrol 55 kW 75 BHP (1981.05 - 1985.12)
Mazda/323/1.5 (BF5S)/1985.08-1989.05/E5 1490 Petrol 55 kW 75 BHP (1985.08 - 1989.05)
Mazda/323/1.5 (BD105)/1980.11-1985.07/E5 1490 Petrol 59 kW 80 BHP (1980.11 - 1985.07)
Mazda/323/1.5 (BD105)/1980.11-1983.12/E5 1490 Petrol 63 kW 86 BHP (1980.11 - 1983.12)
Mazda/323/1.5 (BD105)/1982.03-1985.12/E5 1490 Petrol 65 kW 88 BHP (1982.03 - 1985.12)
Mazda/323/1.5 (BD105)/1982.03-1986.09/E5 1490 Petrol 65 kW 88 BHP (1982.03 - 1986.09)
Mazda/323/1.5 i Turbo (BF5S)/1985.08-1989.05/E5E2 1490 Petrol 85 kW 115 BHP (1985.08 - 1989.05)
Mazda/323/1.5 i (BF5S)/1985.08-1989.05/E5E3 1490 Petrol 70 kW 95 BHP (1985.08 - 1989.05)
Mazda/323/1.7 D (BW7W)/1986.11-1987.08/PN26 1720 Diesel 40 kW 54 BHP (1986.11 - 1987.08)
Mazda/323/1.7 D (BW7W)/1986.11-1989.10/PN26, PN54 1720 Diesel 42 kW 57 BHP (1986.11 - 1989.10)
Mazda/323/1.7 D (BF7P)/1986.09-1989.05/PN27 1720 Diesel 40 kW 54 BHP (1986.09 - 1989.05)
Mazda/323/1.7 D (BF7P)/1987.01-1989.05/PN46 1720 Diesel 42 kW 57 BHP (1987.01 - 1989.05) ,
