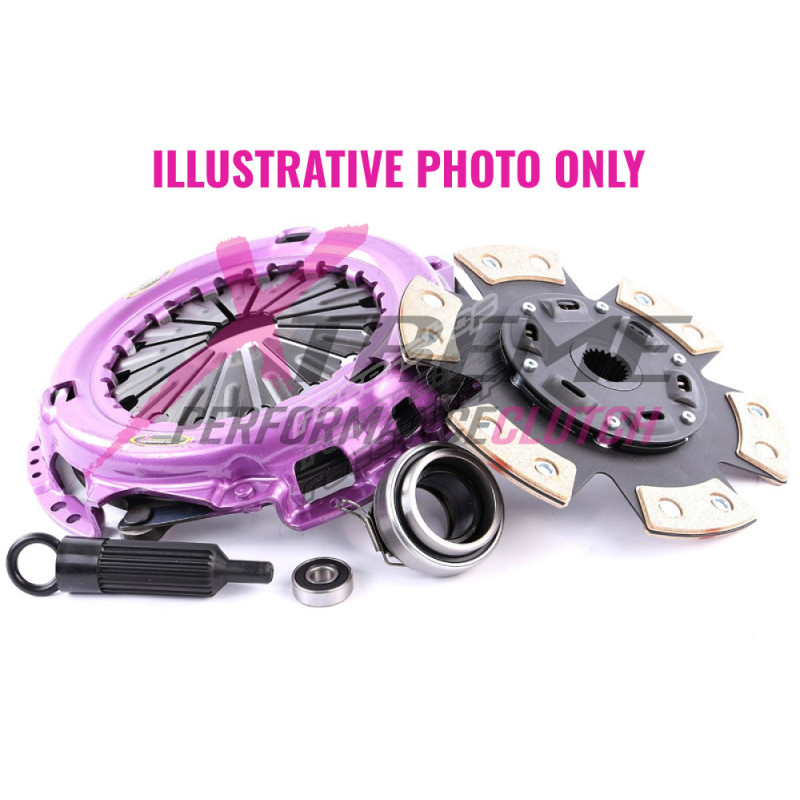

KNI20003-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 350Nm 650kg (40%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 350Nm
• Clamp load 650kg 40% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI20003-1B

Weight: 5.28

Note:

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 18
Clutch Disc Spline Diameter (mm): 20.5
Torque (Nm): 350
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Clamp Load: 650Kg (40% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Nissan/Almera/N16 | 1.5/2000.07-2006.11/QG15DE 1498 Petrol 66 kW 90 BHP (2000.07 - 2006.11) Until 01/2002,
Nissan/Almera/N16 | 1.5/2002.10-2006.09/QG15DE 1498 Petrol 72 kW 98 BHP (2002.10 - 2006.09)
Nissan/Bluebird/U12 | 1.6/1985.12-1990.02/CA16S 1598 Petrol 66 kW 90 BHP (1985.12 - 1990.02)
Nissan/Bluebird/U12 | 1.6/1986.03-1990.06/CA16S 1598 Petrol 61 kW 83 BHP (1986.03 - 1990.06)
Nissan/Cherry/N12 | 1.5 ET Turbo/1983.01-1985.12/E15RT 1488 Petrol 77 kW 105 BHP (1983.01 - 1985.12)
Nissan/Primera/P10 | 1.6/1993.06-1996.01/GA16DE 1597 Petrol 75 kW 102 BHP (1993.06 - 1996.01)
Nissan/Primera/P10 | 1.6/1990.06-1996.01/GA16DS 1597 Petrol 71 kW 97 BHP (1990.06 - 1996.01)
Nissan/Primera/P10 | 1.6/1990.06-1996.01/GA16DS 1597 Petrol 66 kW 90 BHP (1990.06 - 1996.01)
Nissan/Primera/P10 | 2.0 D/1991.01-1996.01/CD20 1974 Diesel 55 kW 75 BHP (1991.01 - 1996.01)
Nissan/Primera/P11 | 1.6 16V/1996.06-2001.12/QG16DE 1597 Petrol 78 kW 106 BHP (1996.06 - 2001.12)
Nissan/Primera/P11 | 1.6 16V/1996.09-2002.07/GA16DE 1597 Petrol 73 kW 99 BHP (1996.09 - 2002.07)
Nissan/Primera/P11 | 1.6 16V/1996.09-2002.07/GA16DE 1597 Petrol 66 kW 90 BHP (1996.09 - 2002.07)
Nissan/Primera/W10 | 1.6 i/1991.02-1998.03/GA16DE 1597 Petrol 75 kW 102 BHP (1991.02 - 1998.03)
Nissan/Primera/W10 | 1.6 i/1990.07-1998.03/GA16DS 1597 Petrol 66 kW 90 BHP (1990.07 - 1998.03)
Nissan/Primera/WP11 | 1.6 16V/1998.04-2001.12/GA16DE 1597 Petrol 66 kW 90 BHP (1998.04 - 2001.12)
Nissan/Primera/WP11 | 1.6 16V/1998.04-2001.12/GA16DE 1597 Petrol 73 kW 99 BHP (1998.04 - 2001.12)
Nissan/Stanza/T11 | 1.6/1981.08-1985.12/CA16S 1598 Petrol 60 kW 82 BHP (1981.08 - 1985.12)
Nissan/Stanza/T11 | 1.8 SGL/1983.03-1985.12/CA18S 1809 Petrol 66 kW 90 BHP (1983.03 - 1985.12)
Nissan/Stanza/T11 | 1.8/1981.08-1985.12/CA18S 1809 Petrol 66 kW 90 BHP (1981.08 - 1985.12)
Nissan/Stanza/T11 | 1.8/1981.08-1985.12/CA18S, CA18 1809 Petrol 65 kW 88 BHP (1981.08 - 1985.12)
Nissan/Sunny/B13/N14 | 2.0 D/1990.10-1995.05/CD20 1974 Diesel 55 kW 75 BHP (1990.10 - 1995.05)
Nissan/Sunny/B12/N13 | 1.6/1986.06-1988.10/E16S 1597 Petrol 62 kW 84 BHP (1986.06 - 1988.10)
Nissan/Sunny/Y10 | 1.6 i 16V 4x4/1992.10-2000.03/GA16DE 1597 Petrol 75 kW 102 BHP (1992.10 - 2000.03)
Nissan/Sunny/Y10 | 2.0 D/1991.06-2000.03/CD20 1974 Diesel 55 kW 75 BHP (1991.06 - 2000.03) ,
