Anulator EGR cu garnituri pentru FORD CITROEN VOL 1.4 1.6 TDCi HDI

Sistemul EGR funcționează prin returnarea unei mici părți din gazele de evacuare înapoi în admisie, astfel reducând, cantitatea de NOx emisă.. Cu toate acestea, motorina este foarte grasă, iar EGR este adesea blocat, reducând astfel trecerea întregului tract al motorului. Există o scădere a performanței și o creștere a fumului.

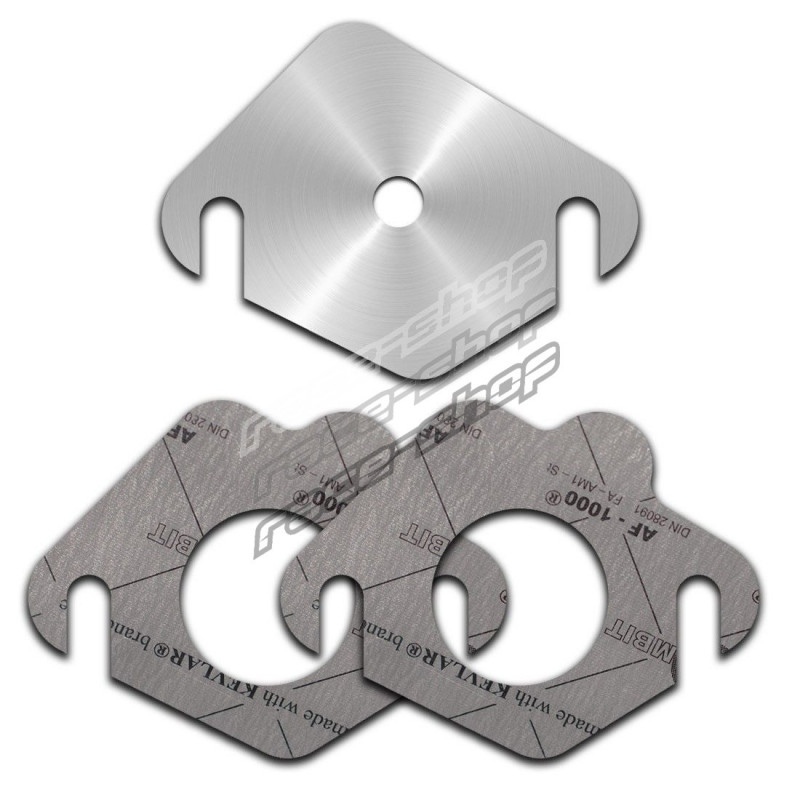

Acest kit conține garnituri și dopuri pentru a elimina supapa EGR originală.

Notă: după anulare, sistemul EGR trebuie eliminat prin software, deoarece pe bord se va afișa o eroare.

Compatibilitate:

Citroen
BERLINGO / BERLINGO FIRST Box / MPV (M_)
1.6 HDI 75 (MB9HW) (9HW (DV6BTED4) DV6B) 1560ccm 75HP / 55kW 2005 / 07-2011 / 12
1.6 HDI 90 (MB9HX, MC9HX) (9HX (DV6ATED4) )) 1560ccm 90HP / 66kW 2005 / 07-2011 / 12
BERLINGO / BERLINGO FIRST MPV
1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) (9HW (DV6BTED4) DV6B) 1560ccm 75HP / 07-2011 75HP / 07-2011 / 12
1.6 HDI 90 (MF9HX) (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2005 / 07-2008 / 05
BERLINGO MULTISPACE (B9)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 04-
1.6 HDi 75 16V (9HT (DV6BTED4)) 1560ccm 75HP / 55kW 2008 / 04-
1.6 HDi 90 (9HV (DV6TED4B) 9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2008 / 04-
BERLINGO Box Body / Minivan (B9)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 04-
1.6 HDi 75 ( 9HT (DV6BTED4) 9HT (DV6BUTED4)) 1560ccm 75HP / 55kW 2008 / 04-
1.6 HDi 90 16V (9HS (DV6TED4BU) 9HX (DV6AUTED4)) 1560ccm 90HP / 66kW 2008 / 04-
BERLINGO Platform / Chassis 90 16V (B9) (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2008 / 04-
C2 (JM_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2005 / 09-2009 / 12
C3 I (FC_, FN_)
1.6 16V HDi (9HX ( DV6ATED4)) 1560ccm 90HP / 66kW 2005 / 10-
1.6 16V HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2005 / 09-
C3 PICASSO (SH_)
1.6 HDi (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2009 / 02-
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2009 / 02-
C4 GRAND PICASSO I (UA_)
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4) ) 1560ccm 109HP / 80kW 2006 / 10-2011 / 06
C4 I (LC_)
1.6 HDi (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2004 / 11-2011 / 07
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 11-2011 / 07
C4 PICASSO I MPV (UD_)
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 02-2013 / 08
C4 coupe (LA_)
1.6 HDi (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2004 / 11-2011 / 07
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 11-2011/07
C5 II (RC_)
1.6 HDi (RC8HZB) (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 09-
C5 II Break (RE_)
1.6 HDi (RE8HZB) (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 09-
C5 III (RD_)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 02-
C5 III Break (RW_)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 02-
C5 closed box / estate (DE_, RE_)
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 09-2008 / 01
XSARA PICASSO (N68)
1.6 HDi (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2005 / 09-2011 / 12
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 05-2011 / 12

Ford
C-MAX (DM2)
1.6 TDCi (G8DA G8DB G8DD) 1560ccm 109HP / 80kW 2007 / 02-2010 / 09
1.6 TDCi (GPDA HHDA HHDB) 1560ccm 90HP / 66kW 2007 / 02-2010 / 09
FIESTA V (JH_, JD_)
1.6 TDCi (HHJA HHJB) 1560ccm 90HP / 66kW 2004 / 11-2008 / 06
FOCUS C-MAX (DM2)
1.6 TDCi (G8DA G8DB G8DD G8DE G8DF) 1560ccm 109HP / 80kW 2003 / 10-2007 / 03
1.6 TDCi (HHDA HHDB) 1560ccm 90HP / 66kW 2005 / 02-2007 / 03
FOCUS II (DA_, HCP, DP)
1.6 TDCi (G8DA G8DB G8DD G8DE G8DF) 1560ccm 109HP / 80kW 2004 / 07-2012 / 09
1.6 TDCi (GPDA GPDB GPDC HHDA HHDB) 1560ccm 90HP / 66kW 2005 / 01-2012 / 09
FOCUS II Turnier (DA_, FFS, DS)
1.6 TDCi (G8DA G8DB G8DD G8DE G8DF) 1560ccm 109HP / 80kW 2004 / 07-2012 / 09
1.6 TDCi (GPDA GPDB GPDC HHDA HHDB) 1560ccm 90HP / 66kW 2004 / 07-2012 / 09
FOCUS II sedan (DB_, FCH, DH)
1.6 TDCi (G8DA G8DB G8DD G8DE G8DF) 1560ccm 109HP / 80kW 2005 / 04-2012 / 09
1.6 TDCi (GPDA GPDB GPDC HHDA HHDB) 1560ccm 90HP / 66kW 2005 / 04-2012 / 09
FUSION (JU_)
1.6 TDHJB (HHJA HHJA HHJA HHJA HHDB) 1560ccm 90HP / 66kW 2004 / 11-2012 / 12

Mazda
3 (BK)
1.6 DI Turbo (Y601 Y603 Y605 Y642) 1560ccm 109HP / 80kW 2004 / 06-2009 / 06
1.6 MZ-CD (Y406) 1560ccm 90HP / 66kW 2006 / 06-2009 / 12
3 (BL)
1.6 MZ- CD (Y642) 1560ccm 109HP / 80kW 2008 / 12-2013 / 05
3 sedan (BK)
1.6 DI Turbo (BK12Y) (Y601 Y603 Y605 Y642) 1560ccm 109HP / 80kW 2004 / 06-2009 / 06

Mini
MINI (R56)
Cooper D (9HZ (DV6TED4) W16 D16 (9HZ)) 1560ccm 109HP / 80kW 2006 / 11-2010 / 09
One D (9HZ (DV6TED4)) 1560ccm 90HP / 66kW 2009 / 06-2010 / 07
MINI CLUBMAN (R55)
Cooper D (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 10-2010 / 02

Peugeot
1007 (HP_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 06-
206 CC (2D)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2005 / 04-2007 / 02
206 SW (2E / K)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 05-
206 liftback (2A / C)
1.6 HDi 110 (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 05-2007 / 02
207 (WA_, WC_)
1.6 HDi (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2006 / 02-2013 / 10
207 CC (WD_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007/02 -2015/01
207 SW (WK_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 06-2012 / 12
3008 MPV (0U_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2009 / 06-2016 / 08
307 (3A / C)
1.6 HDi 110 (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 02-2009 / 03
307 Break (3E)
1.6 HDi (9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4A) 9HED4 (DV6) )) 1560ccm 90HP / 66kW 2005 / 04-2008 / 04
1.6 HDi 110 (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 02-2008 / 04
307 SW (3H)
1.6 HDI 110 (9HY (DV6TED4) 9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2003 / 11-2007 / 12
308 I (4A_, 4C_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 09-2014 / 10
308 SW I (4E_, 4H_)
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2007 / 09-2014 / 10
407 (6D_)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 05-2010 / 12
407 SW (6E_)
1.6 HDi 110 (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2004 / 05-2010 / 12
5008 (0U_, 0E_ )
1.6 HDi (9HZ (DV6TED4)) 1560ccm 110HP / 80kW 2009 / 09-2017 / 03
PARTNER Full Body / MPV
1.6 HDi (9HT (DV6BTED4) 9HT (DV6BUTED4) 9HW (DV6BTED4)) 1560ccm 75HP / 55kW 2008 / 04- 1.6kW 2008 / 04-
1.6kW HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 04-
1.6 HDi 16V (9HS (DV6TED4BU) 9HX (DV6AUTED4)) 1560ccm 90HP / 66kW 2008 / 04-
1.6 HDi 16V (9HX (DV6ATED4)) 1560ccm 92HP / 68kW 2010 / 04-
PARTNER Full body / minivan (5_, G_)
1.6 HDi 75 (9HW (DV6BTED4)) 1560ccm 75HP / 55kW 2005 / 08-2008 / 07
1.6 HDi 90 (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2005 / 08-2015 / 12
PARTNER TEPEE
1.6 HDi (9HZ (DV6TED4)) 1560ccm 109HP / 80kW 2008 / 04-
PARTNER Tepee
1.6 HDi 16V (9HX (DV6ATED4)) 1560ccm 92HP / 68kW 2010 / 04-
PARTNER large-space body (MPV) (5_, G_)
1.6 HDi 75 (9HW (DV6BTED4)) 1560ccm 75HP / 55kW 2005 / 08-2008 / 07
1.6 HDi 90 (9HX (DV6ATED4)) 1560ccm 90HP / 66kW 2005 / 08-2015 / 12

Suzuki
SX4 (EY, GY)
1.6 DDIS (RW 416D) (9HX) 1560ccm 90HP / 66kW 2007 / 04-

Piese de schimb / Coduri OEM / Notă a producătorului:

-
