STRONGFLEX - 036233B: Kit complet bucșe suspensie E39 Sedan

Codul produsului: 036233B

Name: Full suspension bush kit E39 Sedan

Fit:

BMW E39 Sedan 95-03

Include:

2 x 031238B Front anti roll bar bush
or
2 x 031248B Front anti roll bar bush

2 x 031420B Front lower tie bar to chassis bush 58mm
or

2 x 031638B Front lower tie bar to chassis bush 66mm

2 x 031421A Front inner track control arm bush SPORT

2 x 031197A Rear lower trailing arm front bush SPORT

2 x 031198A Rear lower trailing arm rear bush SPORT

2 x 031744A Rear toe adjust inner bush SPORT

2 x 031745A Rear upper arm inner bush SPORT

4 x 031715B Rear beam mount bush

1 x 031717B Rear diff mount - front bush

2 x 031718B Rear diff mount - rear bush

2 x 031167B Rear anti roll bar bush

Pcs/prod: 23

Required/car: 1

Diagrams:

D0304

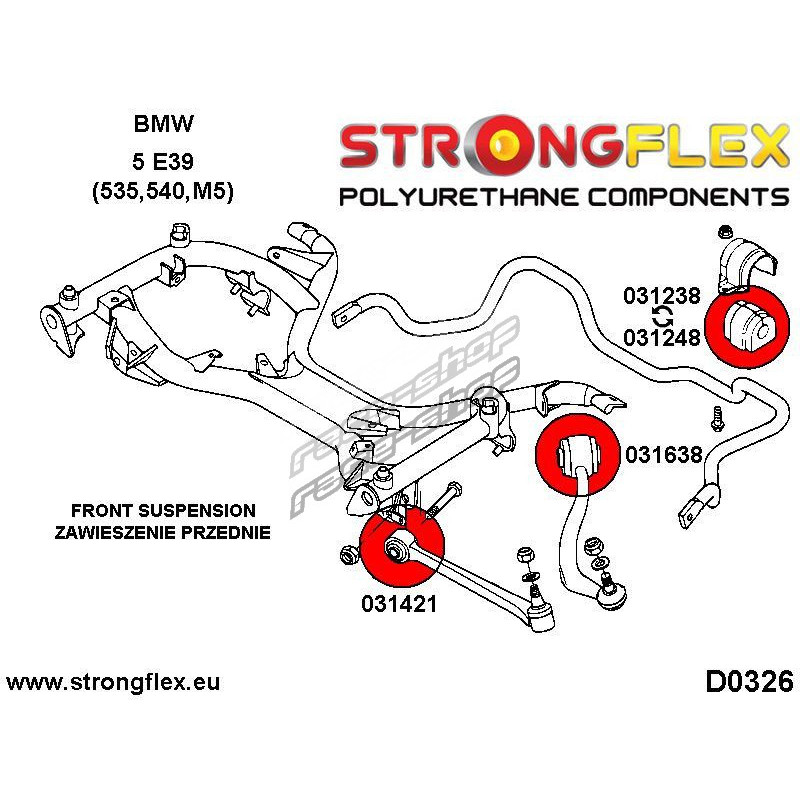

D0326

D0331

D0334

S0307

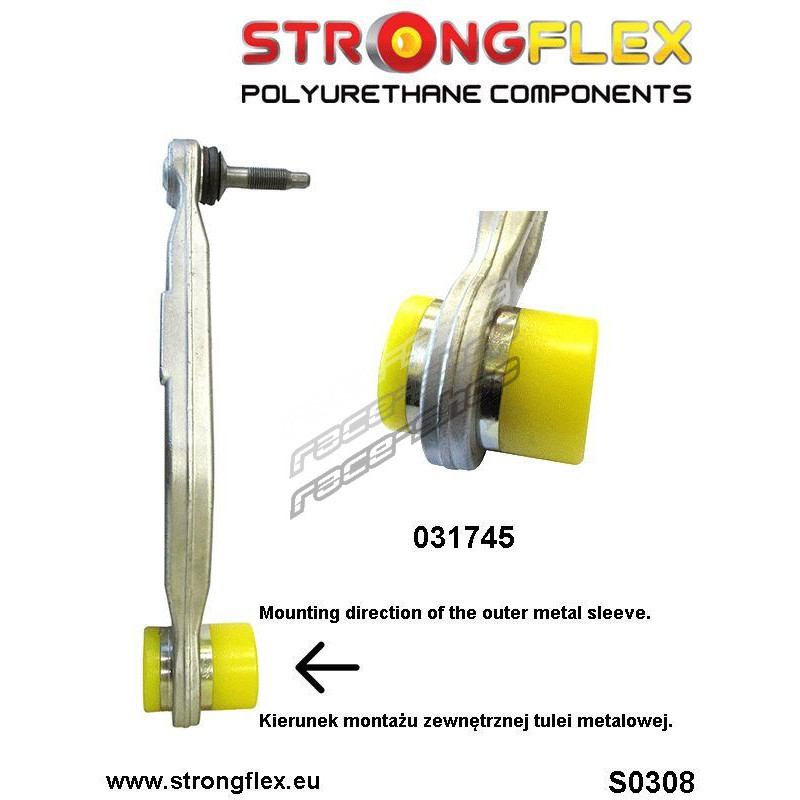

S0308

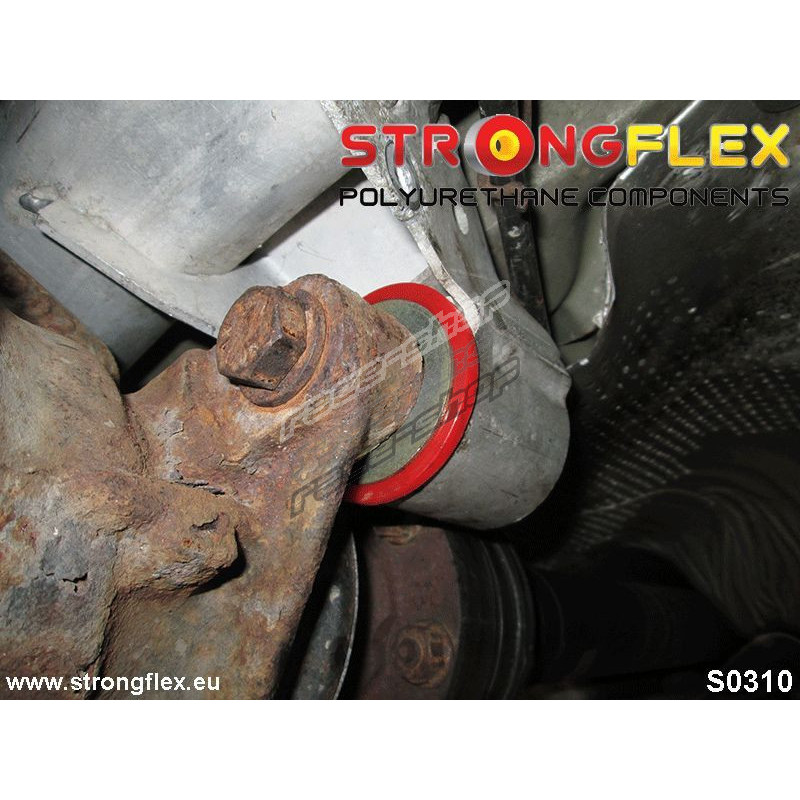

S0310

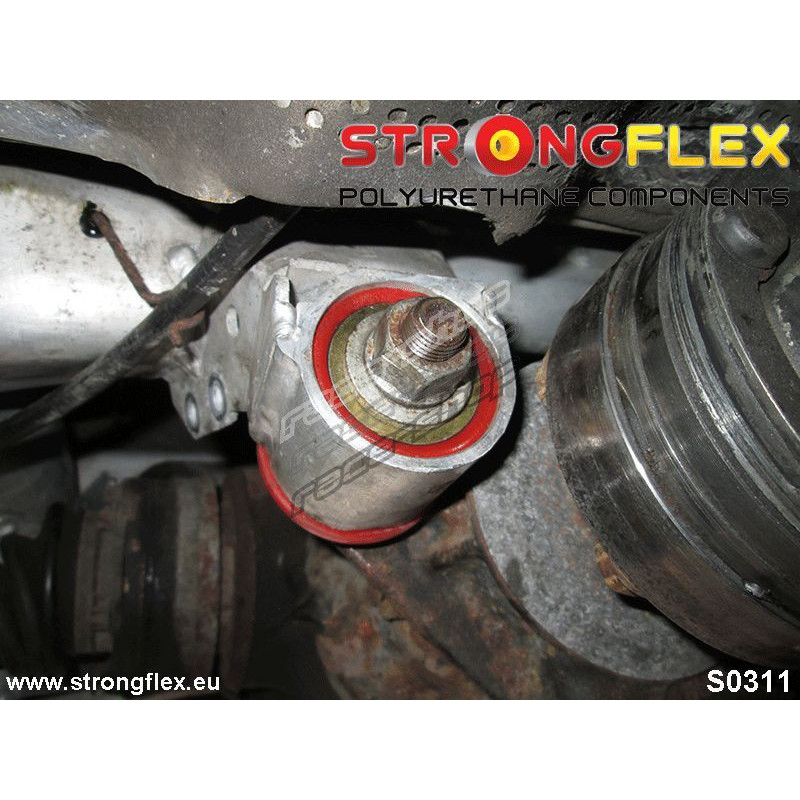

S0311

S0312

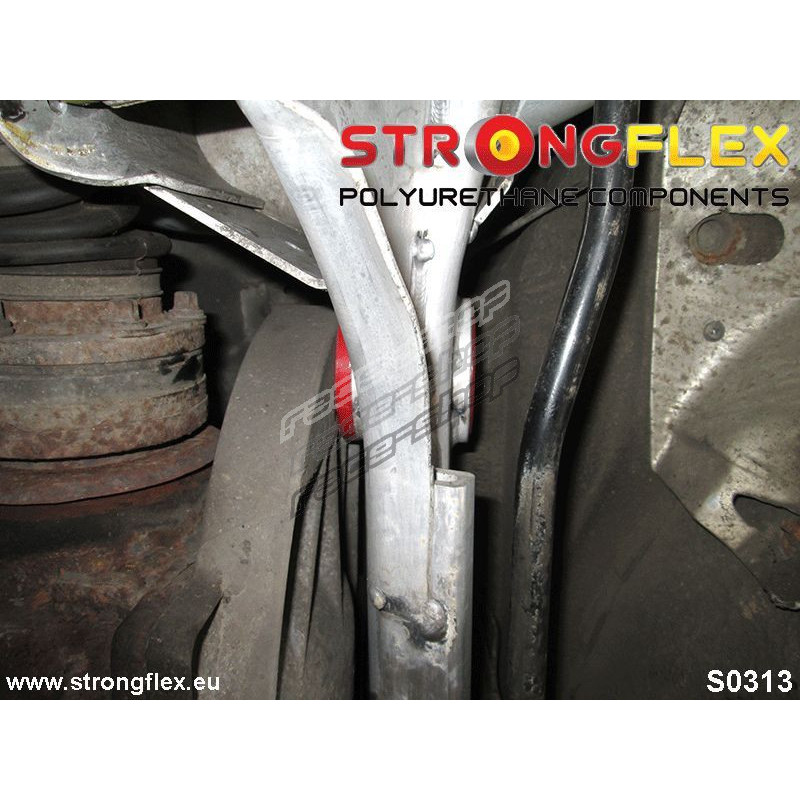

S0313
S0317

NOTE!
There are two types of front stabilizer bushing.
Before buying check the type of bush.
See picture S0307

NOTE!
There are two types of front control arm bush.
031420 - 58mm models 520-530,
031638 - 66mm models 535, 540 & M5.
Before buying check the type of bush.

NOTE!
Fixing screws bushes are available in several sizes for Rear trailing arm bush 031198.
Before buying bush, select the right combination for your model.
