GARRETT 908830-0002 WASTEGATE KIT GVW-60 1 BAR / 14.5 PSI 60MM BLUE

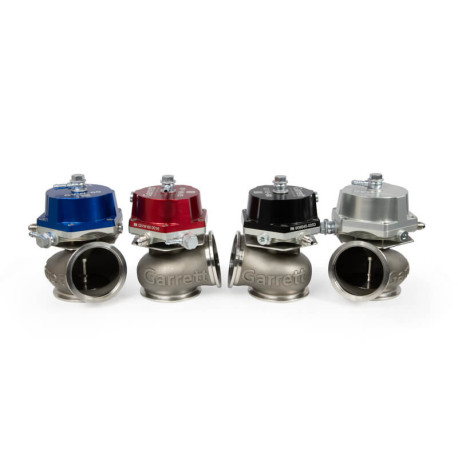

Garrett Vent / External wastegates are created by the engineers that designed G-Series and GTX Gen II turbochargers. Available in four sizes: 40mm / 45mm / 50mm / 60mm and four color combinations: Red / Blue / Black / Silver.

The valve housing is cast from high temp stainless steel and rated for exhaust temperatures up to 1050 degrees; C. CFD optimized for maximum flow and thermal efficiency. Nomex reinforced elastomer diaphragm provides exceptional durability and fatigue resistance.

GVW wastegates are set to 1 Bar / 14.5 PSI of base pressure and can be configured from 0.2 Bar / 2.9 PSI - 1.7 Bar / 24.7 PSI (considering 1:1 backpressure). The actuator design allows for multiple air/liquid fitting orientations. All fasteners, springs, fittings, V-bands, clamps, and flanges included.

Features:

• CFD tested for maximum flow and thermal efficiency
• Optimized actuation stability and temperature resistance for
  superior durability
• Replaceable valve and bushing components to increase service life
• Robust design for easy diaphragm replacement
• Liquid-cooled actuator ports for use on severe applications (up to
  52% reduction in body temp)
• Anodized aluminum actuator cover

Product category: Wastegate
