GARRETT 938339-5003S SUPERCORE G-SERIES II G42-1585

Description GARRETT 938339-5003S Supercore G-Series II G42-1585

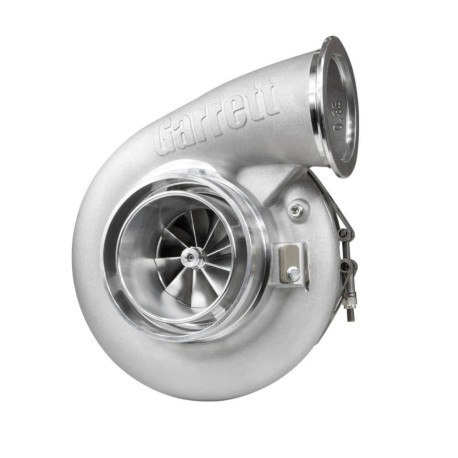

The Garrett G-Series II G42-1585 Supercore turbocharger offers cutting-edge performance for motorsport professionals, tuners, and high-performance vehicle enthusiasts. Featuring the latest compressor aerodynamics, this unit delivers up to 10% higher compressor flow compared to G-Series Gen I models. Designed as a drop-in upgrade for existing G-Series I setups, the G42-1585 combines forged, fully machined compressor components with a high-temperature Inconel turbine for exceptional durability and efficiency under demanding conditions.

Specifications

• Compressor Inducer: 79 mm
• Compressor Exducer: 98 mm
• Compressor Wheel Material: Forged Fully Machined
• Compressor A/R: 0.85
• Turbine Inducer: 82 mm
• Turbine Exducer: 75 mm
• Turbine Trim: 84
• Turbine Wheel Material: Inconel
• Frame Size: 42
• Rotation: Standard
• Cooling: Oil & Water Cooled
• Minimum Horsepower: 475 HP
• Maximum Horsepower: 1585 HP
• Minimum Engine Displacement: 2.0 L
• Maximum Engine Displacement: 7.0 L
• Maximum Allowable Turbocharger Speed: 125,000 RPM

Product category: Turbocharger
