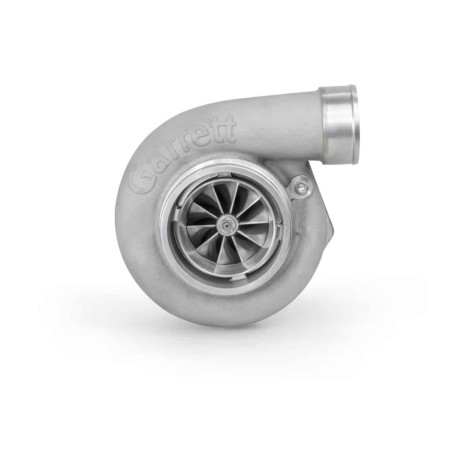

GARRETT 913840-5001S SUPER CORE GBC35-700

Garrett Boost | Club Line turbochargers are high performance journal bearing products in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger.

• 58mm compressor inducer | 76mm compressor exducer
• Outline interchangeable with GBC37-900
• 400 –700 horsepower capability
• Billet compressor wheel with extended tip design for higher pressure ratios
• Journal bearing rotating group with 360-degree thrust bearing
• Machined boost signal port with installed plug
• Modern turbine wheel aerodynamics
• Oil-cooled center housing

Forged, fully-machined compressor wheels with advanced aero is offered in 58mm inducer size and 76mm exducer. GBC35-700 can support from 400-700 horsepower. The compressor wheel is a 58 trim and the Compressor housing A/R is 0.72 A/R. This turbocharger can support up to 68 lbs/min of airflow and up to 4.1 pressure ratio.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

GBC35-700 characteristics:

HP: 400 -700

Disp: 2.0L-5.0L

Compressor:

Inducer: 58mm

Exducer: 76mm

Trim: 58

A/R: 0.72

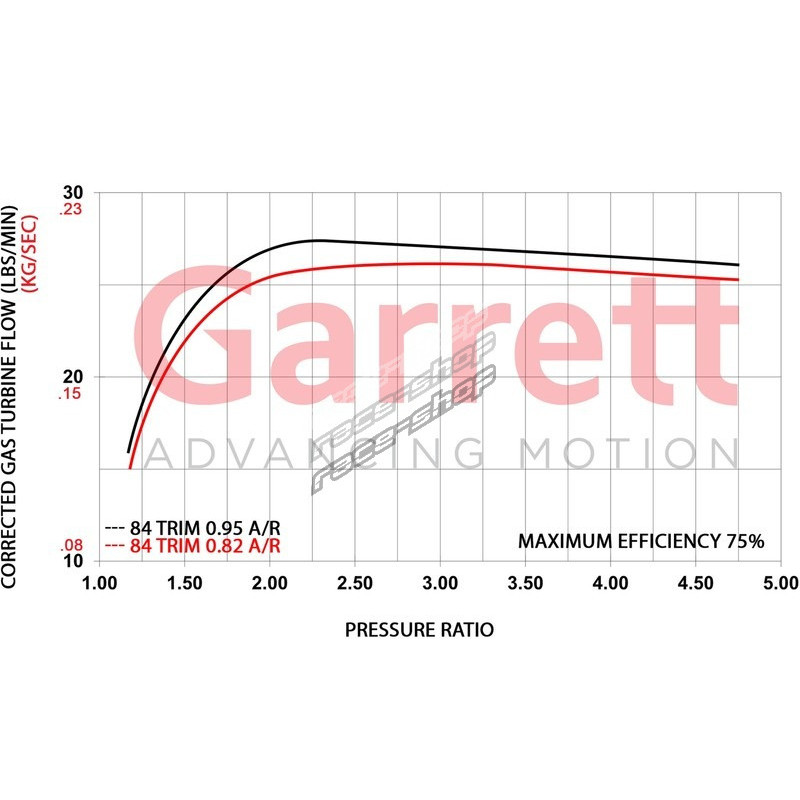

Turbine:

Inducer: 68mm

Exducer: 62mm

Trim: 84



Product category: Turbocharger
