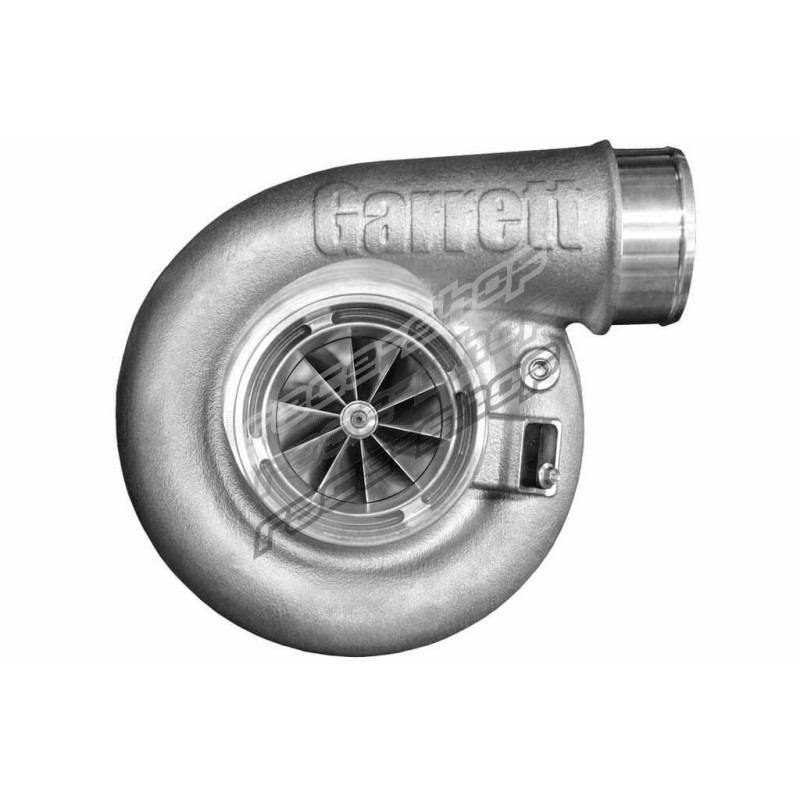

GARRETT 860778-5002S SUPERCORE G42-1200 COMPACT CHS, STANDARD ROTATION

Description GARRETT 860778-5002S Supercore G42-1200 Compact CHS, Standard Rotation

This compact turbocharger is engineered for high-performance output with minimal space requirements. Featuring premium materials, CFD-optimized aerodynamics, and external wastegate compatibility, it’s ideal for custom and motorsport applications.

Key features

• CFD-optimized, forged milled compressor wheel
• High-flow compressor housing with sensor-ready port
• Standard (clockwise) rotation
• Dual ceramic ball bearing cartridges
• Inconel turbine wheel rated to 950C
• 950C stainless steel turbine housing
• Four large water jacket ports
• Twin piston rings on compressor and turbine sides
• Water- and oil-cooled for thermal efficiency
• External wastegate configuration
• Compressor: 73mm inducer / 91mm exducer
• Turbine: 82mm inducer / 75mm exducer

Product category: Turbocharger
